Fabshield® XLR-8 ™
For those applications requiring all position capability with low temperature impacts. Designed for use outside.
Fabshield® XLR-8 ™: Hobart® Filler Metal Connects Structures.
Learn More
AWS: A5.20: E71T-8J-H8
Data Sheet: English, Spanish, French
SDS: English (NA), Spanish (NA), French (NA), English (EU), Spanish (EU), French (EU)
Certification: Download PDF
Product Sizes & Specifications
| Part Number | Diameter (IN) | Diameter (MM) | Package | Base Metal | Welding Process | Welding Position |
|---|---|---|---|---|---|---|
| S225719-053 | 1/16 | 1.6 | 33 Lb (15 Kg) VCI Packaged Spool | mild steel | FCAW (flux cored) | flat/horizontal, vertical-up, overhead |

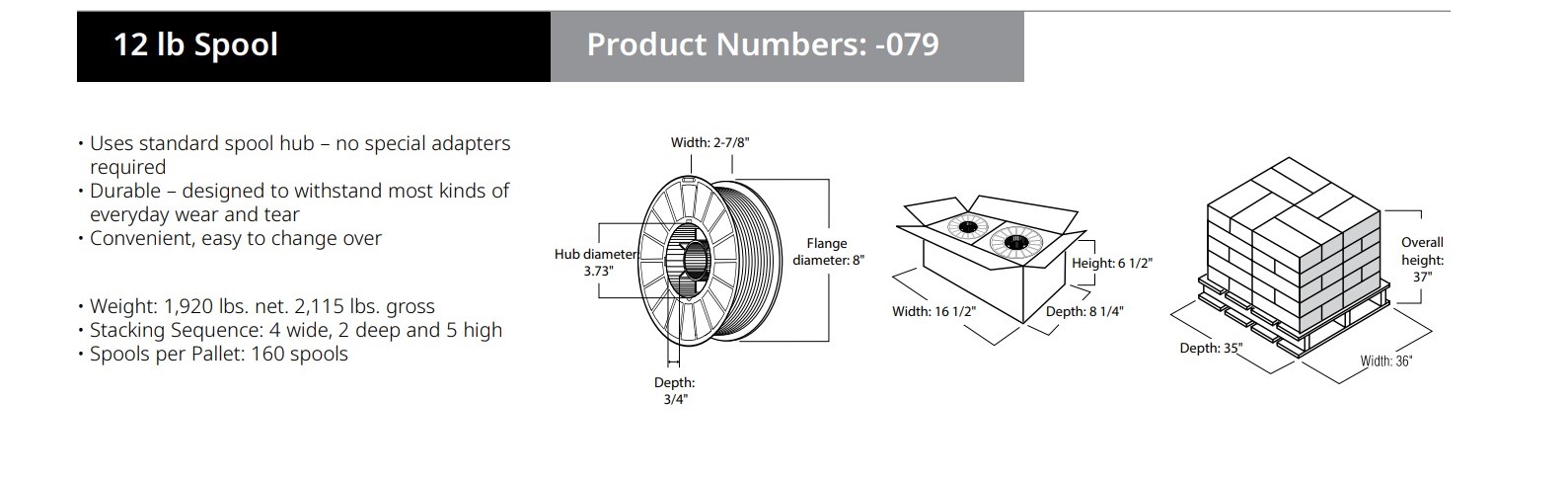

| S225719-079 | 1/16 | 1.6 | 12 Lb (5.4 Kg) VCI Packaged Spool | mild steel | FCAW (flux cored) | flat/horizontal, vertical-up, overhead |
| S225719-083 | 1/16 | 1.6 | 15 Lb (6.8 Kg) VCI Packaged Spool | mild steel | FCAW (flux cored) | flat/horizontal, vertical-up, overhead |
| S225719-082 | 1/16 | 1.6 | 20 Lb (9 Kg) VCI Packaged Spool | mild steel | FCAW (flux cored) | flat/horizontal, vertical-up, overhead |
| S225724-053 | 0.072 | 1.8 | 33 Lb (15 Kg) VCI Packaged Spool | mild steel | FCAW (flux cored) | flat/horizontal, vertical-up, overhead |
| S225724-083 | 0.072 | 1.8 | 15 Lb (6.8 Kg) VCI Packaged Spool | mild steel | FCAW (flux cored) | flat/horizontal, vertical-up, overhead |
| S225724-082 | 0.072 | 1.8 | 20 Lb (9 Kg) VCI Packaged Spool | mild steel | FCAW (flux cored) | flat/horizontal, vertical-up, overhead |
| S225724-V14 | 0.072 | 1.8 | 50 Lb (22.7 Kg) VCI Packaged Coil | mild steel | FCAW (flux cored) | flat/horizontal, vertical-up, overhead |
| S225725-053 | 5/64 | 2 | 33 Lb (15 Kg) VCI Packaged Spool | mild steel | FCAW (flux cored) | flat/horizontal, vertical-up, overhead |
| S225725-082 | 5/64 | 2 | 20 Lb (9 Kg) VCI Packaged Spool | mild steel | FCAW (flux cored) | flat/horizontal, vertical-up, overhead |
Industries
Construction, Shipbuilding, Offshore
Applications
Single or multiple pass applications, no shielding gas required, Structural steel erection, Heavy equipment repair, Non-alloyed and fine grain steels, Ship and barge construction, Bridge construction, AWS D1.8 demand -critical applications.
Videos
Technical Articles
Case Studies
- Contractor Gains Quality and Productivity Benefits with Fabshield® XLR-8 Wire
- Hobart Filler Metals Offer Ease of Use to Custom Welder
- Lambeau Field Expansion Highlights Productivity Benefits of Flux-Cored Welding in Structural Steel Applications
- California Welding Contractor Increase Productivity by 30 Percent with New Welding Equipment and Consumables
Similar Products
-
Fabshield® 21B
This wire is used for almost any general purpose welding application and in any position. Works well on coated steels.
-
Fabshield® 23
Higher deoxidizing elements make this an excellent choice for welds on coated materials. It's soft arc makes this a good choice for thin gauge steels.
