Here’s How To Reduce Spatter Welding
Welding spatter is not only visually unappealing, but it also impacts the efficiency of a welding operation. In most cases, the spatter must be removed to pass a company’s quality checks. Companies also have to factor in the cost for purchasing grinding equipment and abrasives to remove the spatter, as well as maintenance and the associated safety risks of using grinders.
Anti-spatter compound can prevent spatter from accumulating on a part; however, it should be a last resort. Anti-spatter compound adds to an operation’s expenses and has the potential to introduce weld defects like porosity. It is also notoriously messy and can adhere to equipment, tools and the floor, which poses a slipping hazard.
There are several ways to reduce spatter that result in better-looking welds and greater efficiencies without the use of an anti-spatter compound.
No. 1: Adjust wire and welding parameters. The diameter of wire used, along with the power source settings —particularly voltage — impact spatter generation.
For example, larger diameter wires operating at lower or colder welding parameters (less voltage), are prone to creating higher levels of spatter. In this situation, the combination of wire type and size, along with certain corresponding welding parameters, will operate in a short circuit transfer. In this mode, the welding wire makes electrical contact as it touches the base material repeatedly per second. Or the combination may move toward a globular transfer mode, causing large droplets of weld metal (larger than the wire diameter) to transfer across the arc. Both can cause spatter.
When welding with less than ideal settings with a larger wire, it may be beneficial to go down to a smaller size — for instance, from an 0.045 to an 0.035-inch wire. A smaller wire with more optimal settings allows for spray transfer mode that sprays tiny droplets of weld metal across the arc. The result is a smoother arc that reduces spatter.
Shielding gas selection also factors into the ability to achieve a smooth spray transfer mode. When welding with solid wires, it’s necessary to use a minimum of 85% argon in the shielding gas mixture. Tubular wires, like metal-cored wire, require a minimum of 75% argon with a CO2 balance. There is a tradeoff with higher argon levels; they produce deep, narrow joint penetration that may be less forgiving than a wider joint penetration. Welding operations will need to determine if that is more of an issue and a cost factor than dealing with spatter.
No. 2: Avoid mill scale when possible. The presence of mill scale or scale is a common problem in welding operations. This flaky surface found on hot rolled steel is made up of mixed iron oxides and melts off at a higher temperature than the actual base metal, essentially blocking electrical current to the arc during welding. The result is a colder weld deposit that tends to “ball up,” as opposed to wetting out smoothly, and it causes welding spatter.
When possible, weld on base material that is free of scale. This can be achieved by purchasing plate that has already been cleaned or by grinding the mill scale off with a grinder or flap disc. Both add cost to the welding operation but can help avoid downtime for spatter removal.
If welding on scale-free material isn’t possible, be sure to ground the power source securely on a clean surface. Grounding over scale can cause interruptions to arc starting that leads to spatter. Using certain filler metals, like metal-cored wire, can also help minimize issues with mill scale and spatter.

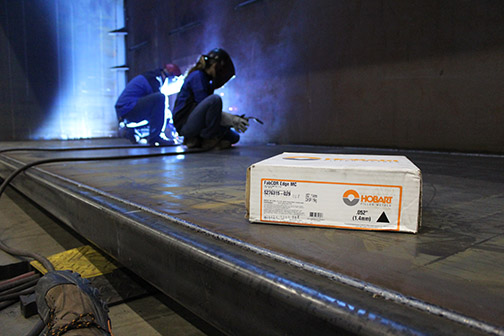

No. 3: Consider metal-cored wires. When possible and appropriate for the welding application, converting from solid wire to metal-cored wire is a good way to control spatter levels. As opposed to a solid wire that has a solid cross section, metal-cored wires are tubular and filled with metallic powders, alloys and arc stabilizers. These wires carry the current through the outside metal sheath, which creates a broader, cone-shaped arc for a wider penetration profile with little to no spatter.
Metal-cored wires also operate in the spray-transfer mode described earlier and can weld well through mill scale without pre-cleaning. Again, the combination reduces the opportunity for spatter.
No. 4: Follow proper welder training and best practices. Less skilled welders can often produce welds with more spatter. As with any part of the welding operation, welder training and following some best practices are key.
Using the appropriate work and travel angles based on the application, wire type and joint configuration, as well as maintaining a proper contact-tip can also reduce spatter and should be instilled into training programs for new welders.
Also, using the proper consumables and replacing them when needed can help reduce spatter.
No. 5: Use pulsed MIG welding. If a welding operation has a power source capable of pulsed MIG welding or is in a position to purchase one, the waveforms it provides can help reduce spatter. Pulsed MIG welding operates by switching between a high peak and low background current approximately 30 to 400 times per second. As the switch occurs, a droplet of wire is pinched off during the peak current and propelled to the weld pool. The background arc is responsible for maintaining the arc during this process, but at a low heat input that prevents metal transfer from occurring.
Pulsed MIG welding pairs well with solid wire and metal-cored wire to reduce spatter and helps with out-of-position welding. Because metal-cored wire already produces little to no spatter, the benefit of spatter reduction is more noticeable when using pulsed MIG welding with solid wire.
Pulsed MIG welding is also relatively easy for new welders to learn, which is an added benefit to creating consistent welds with low spatter, and the process can often weld through mill scale.
Supporting productivity, quality and cost savings
Taking steps to reduce welding spatter can help companies streamline their welding processes and be more efficient. This is particularly true for applications that require parts to be painted. By lowering or eliminating spatter, the part can be moved more quickly into that portion of the welding operation. Spatter reduction can also support weld quality, increase throughput and minimize unnecessary costs.
