When engineers design a structure — whether it be a bridge, building or vehicle — they do so according to the strength of the base material. Every finished product must meet certain requirements, including how much weight it can withstand and the amount of force it can resist. During the welding process, it is usually important the filler metal match or slightly overmatch the base material’s mechanical properties to achieve those requirements and to prevent weld failures that could be potentially catastrophic.

To that end, filler metal manufacturers rigorously test products to guarantee they meet minimum specifications, based on American Welding Society (AWS) and other industry standards. Filler metals’ typical mechanical values will be some degree higher than the AWS minimums.

There are welding variables, however, that can impact the finished weld properties, even when using the same filler metal. Mechanical properties such as tensile strength, ductility and yield strength (see additional information section below) can vary greatly from weld to weld as a result.

Consider this example: An American Welding Society (AWS) E71T-1 gas-shielded carbon steel flux-cored wire typically provides 74,000 psi tensile strength. Changing the shielding gas and welding parameters can make the weld possess over 90,000 psi tensile strength — with that same filler metal. Understanding the ways in which variations in heat input and shielding gases, in particular, affect weld deposit properties is important. It helps ensure the weld stands up to the necessary strength and quality requirements.

Heat input and mechanical properties
Changes in heat input can cause significant variances in the ductility of a weld, as well as its tensile and yield strengths. A material’s strength and its ductility are related. As strength increases, ductility decreases, and vice versa. The general rule is that higher strength equals increased brittleness; however, higher strengths may be required in certain applications.

The strength of the weld deposit increases with lower heat inputs. Using a lower heat input will generally result in smaller welds and requires more weld passes to fill the joint. As well as the changes in strength, lowering heat input will also reduce ductility, which can make the finished weld more susceptible to cracking.

On the other hand, completing a weld with higher heat input results in larger weld deposits and requires fewer passes to fill a joint. This improves ductility and resistance to cracking, but lowers tensile and yield strength — a disadvantage if the reduction is enough to cause the weld to fall below minimum requirements.

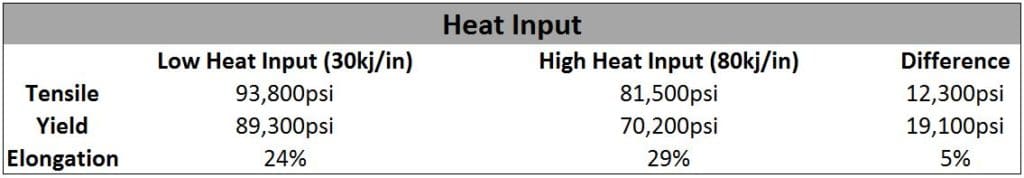

As an example, an AWS E71T-1C or E71T-1M carbon steel wire, when used with a low heat input of 30 kilojoules per inch, produces a tensile strength of 93,800 psi, a yield strength of 89,300 psi and an elongation of 24 percent. Compare that to the same wire used with a high heat input of 80 kilojoules per inch, which produces a tensile strength of 81,500 psi, yield strength of 70,200 psi and elongation of 29 percent. See Figure 1.

There are pros and cons with each of the heat input options; the optimal choice depends on the application’s requirements. For the best results, consult the filler metal manufacturer’s recommended parameters for a specific product to help avoid issues caused by excessively high or low heat inputs. These recommendations suggest heat input ranges to produce the desired strength and ductility results.

The impact of shielding gas
In addition to heat input, shielding gas selection affects the mechanical properties of a weld. There are some general factors to consider when using argon mixtures versus straight CO₂ shielding gas. The scenarios are very similar to those regarding heat input variations, with the same relationship between strength and ductility.

Shielding gas with higher argon content results in welds with higher tensile and yield strengths and lower ductility. Again, the higher strength may or may not be needed for the application, and the disadvantage is that the weld is more susceptible to cracking.

Conversely, higher CO₂ content in a shielding gas mixture improves ductility and crack resistance but lowers the tensile and yield strengths. As a result, the weld may fail minimum requirement standards if the numbers drop below necessary levels.

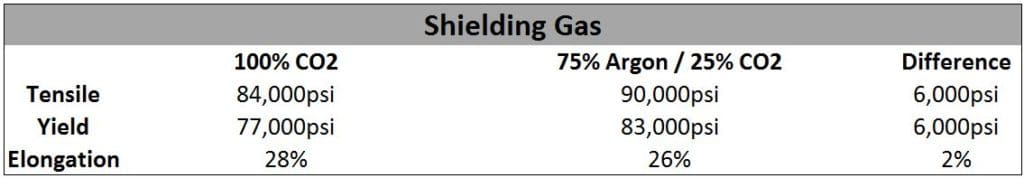

Consider the different variances produced in this example: The same E71T-1C or E71T-1M wire mentioned previously used with 100 percent CO₂ gas provides a tensile strength of 84,000 psi, yield strength of 77,000 psi and 28 percent elongation. The same wire used with a gas mixture of 75 percent argon/25 percent CO₂ results in tensile strength of 90,000 psi, yield of 83,000 psi and elongation of 26 percent. See Figure 2.

There are more factors to selecting shielding gas than just this consideration, however. Shielding gas selection factors in weldability, fume requirements, arc qualities and more. The change in mechanical properties that shielding gas can cause, however, should always be considered, as it directly affects the weld quality.

Heat input and shielding gas – a combined affect
Because high heat input and CO₂ can have a similar effect on mechanical properties (reducing strength and increasing ductility), and lower heat inputs and high argon content gas will do the opposite (push strength up and ductility down), these variables can be used together to compound these effects or to offset each other.

For example, in an application where a high heat input is causing strength to drop, selecting a gas with a higher argon content can help increase strength levels. Conversely, lower heat input may cause a lack of ductility and CO₂ shielding gas can be used to minimize that effect.

Using the same carbon steel gas-shielded wire as in the previous examples, a high heat input with 100 percent CO₂ combination results in a tensile strength of 81,500 psi, yield strength of 70,200 psi and 29 percent elongation. That compares to a low heat input with 75 percent argon gas, which results in 104,400 psi tensile strength, 98,600 psi yield strength and 22 percent elongation (which is the minimum requirement). See Figure 3.

Whether or not combining these factors to work together is the right solution depends upon the filler metal, as some are more or less affected than others. Also, certain filler metals are formulated for dual gas usage, while others can only be used with a single gas.

Understanding the dynamics
There are no absolutes regarding the choice of high heat or low heat, or using an argon or CO₂ shielding gas — which option is the better choice all depends on the needs and requirements of the specific application.That makes it especially important to understand the relationship between these variables, and the impact each has on the mechanical properties of the weld. Knowing how to adjust heat and the impact of shielding gas to help produce the desired effect can help welding operators refine their process ― and ultimately improve their results.


**Additional Information**

Tensile strength is the maximum force required to produce failure

Ductility refers to how much the material can stretch before it fractures

Yield strength is the force required to cause a material to plastically deform or yield

Heat input kilojoules/inch =  amps x volts x 60/1000 x (travel speed in inches/min)

Elongation is a measurement of a material’s ductility expressed in a percentage
